RR250

Portable Refrigerant Recovery Machine RR250 RR500 Single & Dual Cylinder HVAC Refrigerant Recycling Unit for Liquid & Gas Refrigerant Recovery

Refrigerant Recovery Machines

Options

RR250 Single Cylinder Recovery Machine
RR250 Single Cylinder Recovery Machine
¥2325.00
RR500 Dual Cylinder Recovery Machine
RR500 Dual Cylinder Recovery Machine
¥2475.00

Technical Specifications

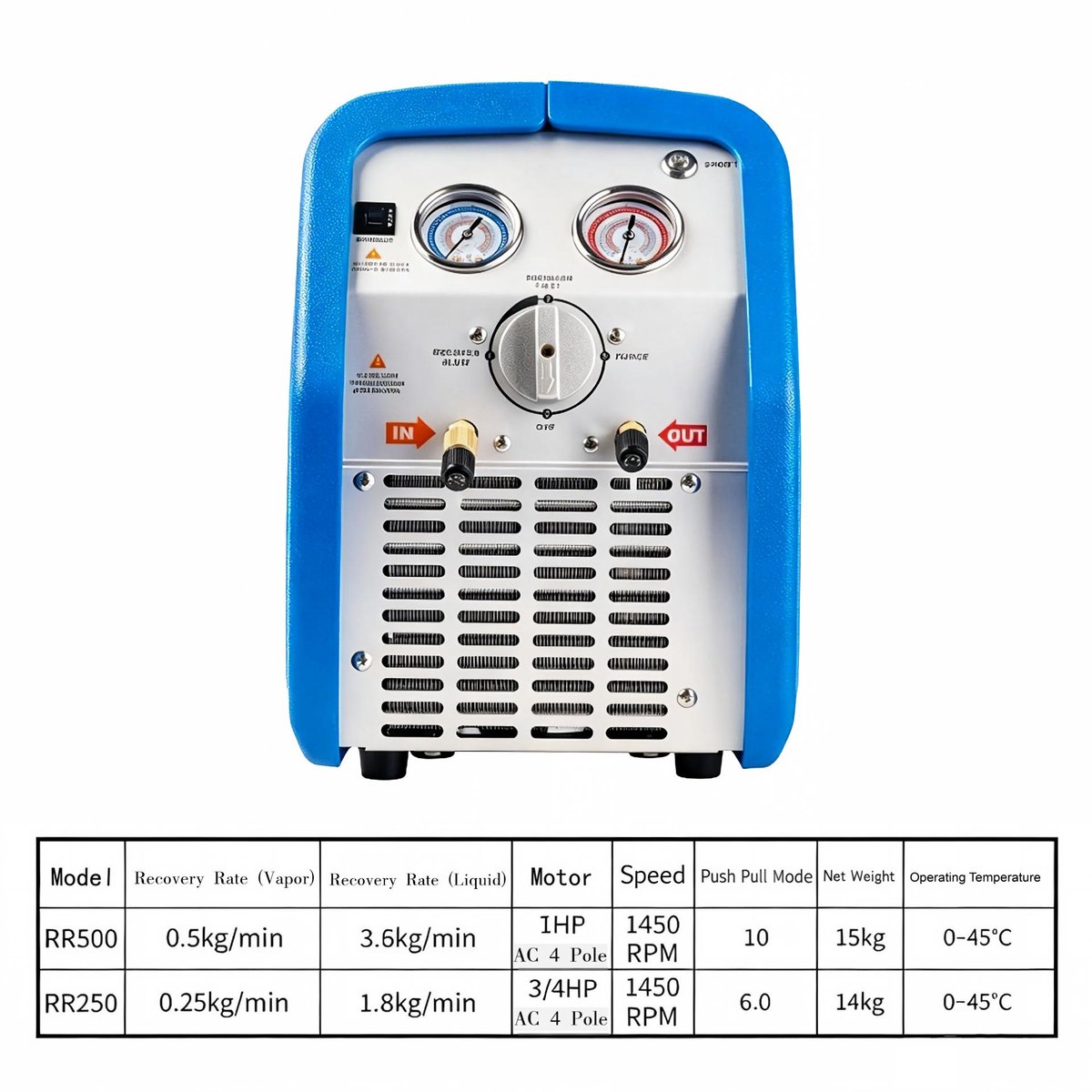

ModelRR250 / RR500
Motor3/4 HP AC 4-Stage (RR250); 1 HP AC 4-Stage (RR500)
Rotation Speed1450 rpm
Operating Current4A (RR250); 5A (RR500)
CompressorOil-free Lubrication, Air-cooled Piston Compressor
High-Pressure Protection Value38.5bar / 3850kPa (558psi)
Recovery RateGas 0.25kg/min (RR250) / 0.5kg/min (RR500); Liquid 1.8kg/min (RR250) / 3.6kg/min (RR500)
Push-Pull Mode Capacity6.0 (RR250); 10 (RR500)
Working Temperature Range0°C - 45°C
Net Weight14kg (RR250); 15kg (RR500)
Applicable RefrigerantsR12, R134a, R410, R500, R22, R401a, R401b, R402a, R402b, R407c, R407d, R408a, R409a, R404a, R411a, R411b, R412a, R502, R509, R407a, R407b, R410a, R507

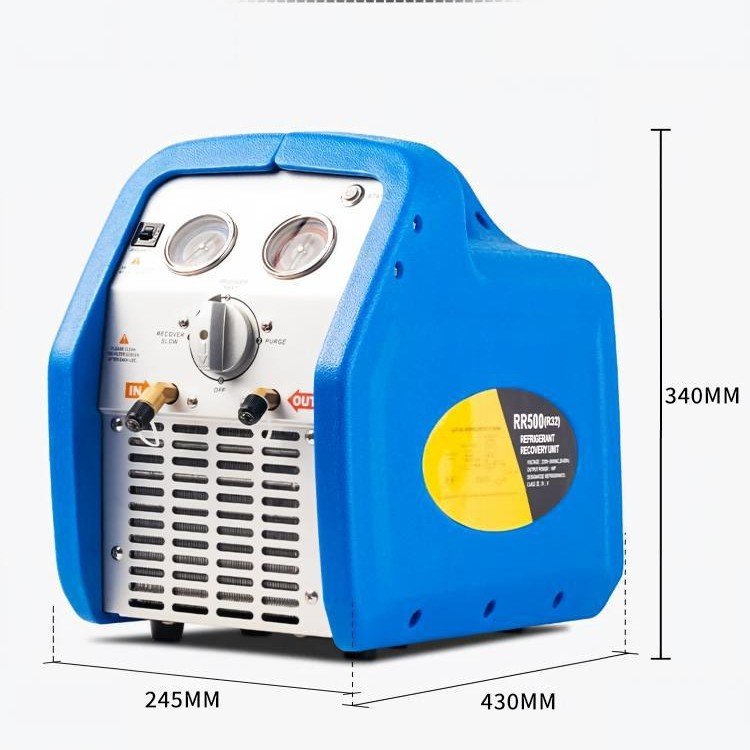

Overall Dimension250 x 400 x 360mm
Color OptionsBlue, Gray, Red, Black, Green
RefrigerantRecoveryMachine PortableRecoveryMachine HVACRecyclingUnit RefrigerantRecycler ACServiceTool
← Back

Product Introduction

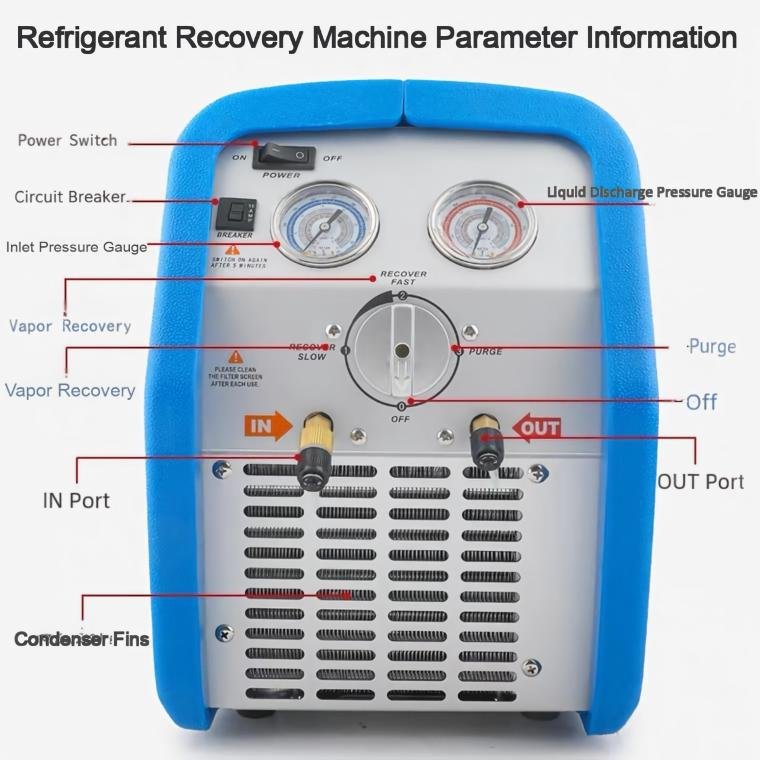

This portable refrigerant recovery machine handles both gas and liquid refrigerant recovery for HVAC-R service. Intelligent motor with overload and over-pressure protection, spark-free safe operation. **Two models:** RR250 (single cylinder, 3/4 HP, 14kg) and RR500 (dual cylinder, 1 HP, 15kg). Oil-free air-cooled piston compressor, compatible with 23+ common refrigerants. ![Recovery machine](/static/img/products/rr250_desc_1.jpg) ![Operation](/static/img/products/rr250_desc_2.jpg) ![Connections](/static/img/products/rr250_desc_3.jpg) ![Applications](/static/img/products/rr250_desc_4.jpg) ![Details](/static/img/products/rr250_desc_5.jpg) ![Specs](/static/img/products/rr250_desc_6.jpg) ![Models](/static/img/products/rr250_desc_7.jpg) ![More](/static/img/products/rr250_desc_8.jpg) ![More](/static/img/products/rr250_desc_9.jpg) ![Package](/static/img/products/rr250_desc_10.jpg)
